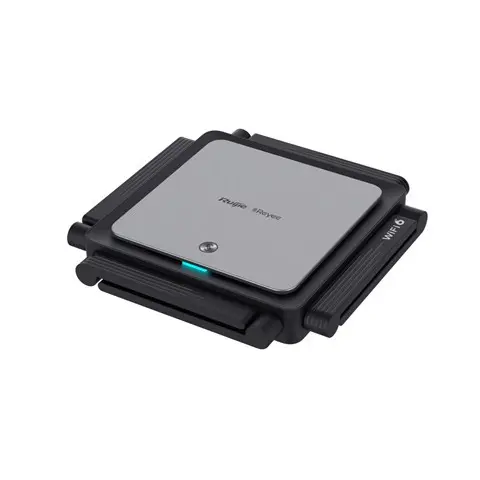

Router Ruijie RG-EW3200GX PRO
Specifications :
Model
RG-EW3200GX PRO
Wireless Parameters
2.4 GHz, 44, maximum rate of 800Mbps
5 GHz, 44, maximum rate of 2400Mbps
8 external non-detachable omnidirectional antennes
802.11a/b/g/n/ac/ax and DL/UL MU-MIMO
Independent 2.4 GHz and 5 GHz modules and dual-band mode
Wi-Fi channel:
2.4GHz :2.4G~2.4835GHz
5GHz 5.150~5.250GHz5.250~5.350H5.470~5.725GH5.725~5.850GHz
Beamforming, OFDMA, and BSS color technologies
Ports
One 10/100/1000M WAN port (Auto MDI/MDIX)
Four 10/100/1000M LAN ports (Auto MDI/MDIX)
Buttons
One Reyee Mesh button (front)
One system reset button (rear)
One power On/OFF button
Indicator
One Reyee Mesh LED indicator
One system LED indicator
Physical
Dimensions (W D H): 190 mm 190 mm 41 mm (antennas not included)
Weight: 1.3 kg (packages not included)
Power Supply
Power specifications: DC 12 V, 2A
Maximum power: < 24 W
Certification
CE
Operating Environment
Operating temperature: 10 to +45
Storage temperature: 40 to +70
Operating humidity: 5% to 95% (non-condensing)
Storage humidity: 5% to 95% (non-condensing)
Software Specifications
Model
RG-EW3200GX PRO
Main features
PPPoE, DHCP, static IP address for network connection
Acquisition of PPPoE accounts from old routers
Dual-band mode
Priority to 5G
Wireless Transmission Power adjustment
Automatic channel adjustment
Guest Wi-Fi
Rate limiting for terminal IP addresses
Static DHCP address
Virtual server
DDNS
DMZ
UPnP
Network security
WPA-PSK/WPA2-PSK encryption
SSID hiding
Wi-Fi squatter prevention (Blacklist)
Network access control
IP & MAC Binding
Firewall
Advanced features
Reyee Mesh: Supported by EW Series Routers. Enables Mix & Match, Self-Healing, One-click mesh, etc;
Wireless roaming;
Hardware NAT;
One-click network optimization;
Issue diagnosis;
Remote maintenance on the cloud;
Auto and manual software upgrade on the cloud
